Precision-Engineered Servo Motor Encoder Connecting Bracket Spring
Introduction
Specially designed to enhance servo motor encoder retention accuracy, the For IHU4809 IHK4808 48T ZKD and other servo motor encoder connecting bracket spring ensures reliable mechanical coupling under demanding operational conditions. This critical component maintains encoder-to-motor alignment integrity, significantly reducing calibration drift and positioning errors common in high-precision applications.
Key Technical Features
▶️ High-Compatibility Design
- Engineered to fit diverse servo motor models including:
- IHU4809 Series
- IHK4808 Series
- 48T ZKD Series
- Universally adaptable for other proprietary encoder-motor interfaces requiring identical tension characteristics
▶️ Material Specifications
- Constructed from ASTM A313 stainless steel spring wire
- Guaranteed tensile strength: ≥ 1,850 MPa
- Thermal stability: -40°C to +120°C operation range
- Anti-creep and corrosion-resistant properties
- Linear force tolerance: ±10% at operational deflection
- Torque transfer efficiency: >95%
- Resonance-damped coil geometry prevents harmonic vibrations
- Non-magnetic composition eliminates EMC interference
Functional Advantages
- Secure Mechanical Coupling: Eliminates micro-movements between encoder disc and motor shaft
- Vibration Mitigation: Precisely calculated spring rate absorbs operational shocks
- Long-Term Elastic Memory: Maintains torsional rigidity over 500,000+ load cycles
- Zero-Maintenance Operation: Seamless integration without periodic tension adjustments
Application Scenarios
This bracket spring proves indispensable for:
- CNC machinery encoder stabilization
- Robotics joint motor assemblies
- Semiconductor manufacturing equipment
- Automated optical inspection systems
- Aerospace positioning mechanisms
All units undergo 100% load-deflection testing before dispatch. Bulk OEM ordering available with custom material certifications. Contact our engineering support team for:
- Motor-specific compatibilityconel®/Hastelloy® variants)
Stock Availability: Ready for immediate shipment with RoHS/REACH compliance documentation included.
Precision components demand precision solutions. Ensure your servo systems operate at peak accuracy with engineered retention technology.

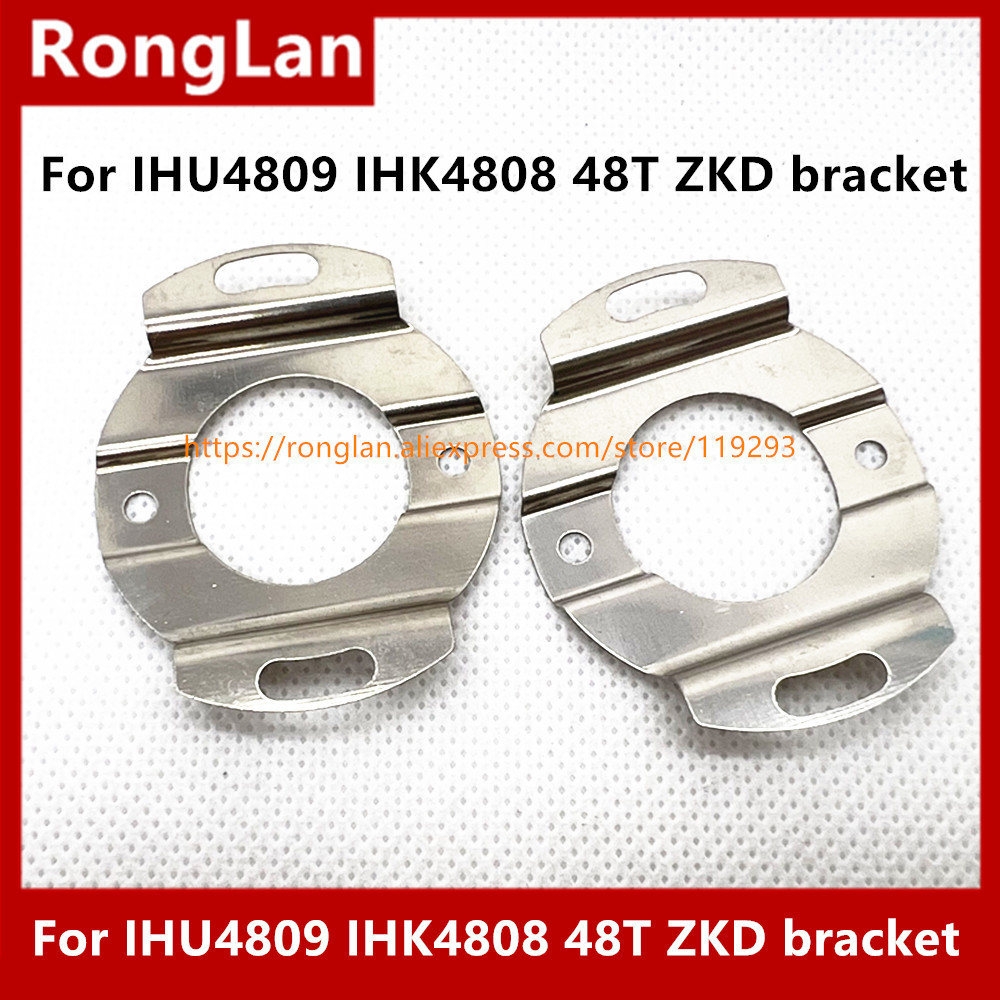

For IHU4809 IHK4808 48T ZKD and other servo motor encoder connecting bracket spring
