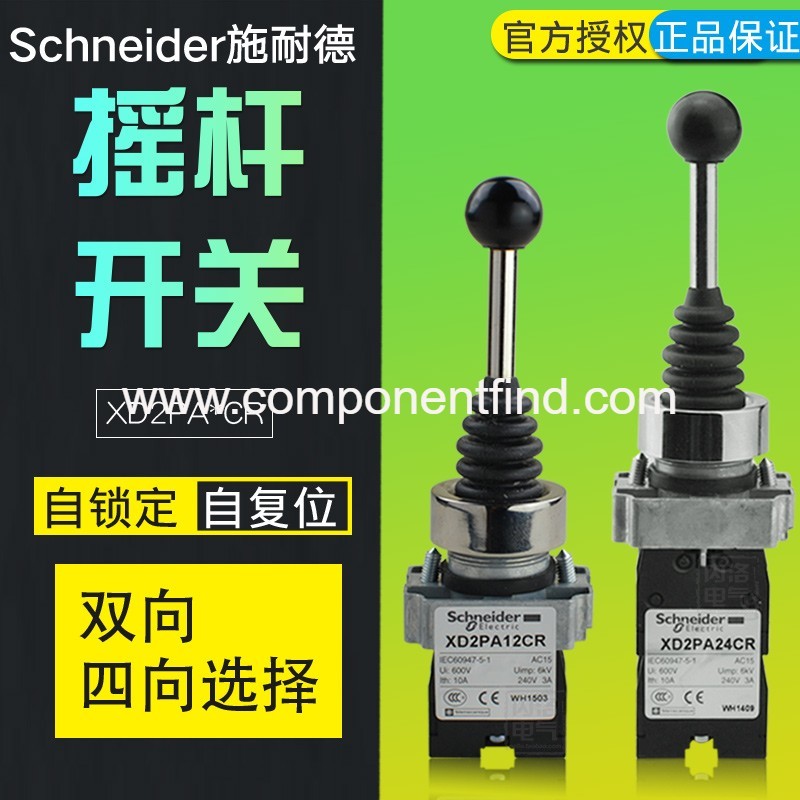

Schneider XD2PA Series Rocker Switch: Precision Control for Industrial Applications
Product Overview
The Schneider Electric XD2PA series represents a high-performance line of 22mm rocker switches designed for demanding industrial control environments. This comprehensive range includes models XD2PA12CR, XD2PA14CR, XD2PA22CR, and XD2PA24CR, engineered to deliver exceptional reliability in machinery operation, process control systems, and equipment panels.
Key Technical Specifications
- Switch Type: Four-way, two-block self-resetting cross switch
- Mechanism: Positive-action rocker with tactile feedback
- Contact Configuration: Double-break silver alloy contacts
- Electrical Rating: 5A at 250V AC / 3A at 440V AC
- Mechanical Life: > 500,000 operations
- Termination: Screw clamp terminals
- IP Rating: IP65 (front panel mounted)
- Operating Temperature: -25°C to +55°C
Engineering Advantages
1. Precision Cross Control
The unique cross/left/right) with self-resetting functionality. This design ensures immediate return to neutral position upon release, critical for safety-critical applications requiring momentary operation.
2. Robust Construction
Featuring Schneider's proprietary thermoplastic housing with UL94 V-0 flame-retardant properties, these switches withstand industrial contaminants including oils, coolants, and particulate matter. The hermetically sealed contact chamber prevents ingress of moisture and dust.
3. Ergonomic Operation
Optimized rocker geometry provides positive tactile feedback with actuation force calibrated at 3.5N ±0.5N, reducing operator fatigue during extended use while preventing accidental activation.
Application Scenarios
- CNC machine control panels
- Material handling direction selection
- Industrial robot teach pendants
- Process valve positioning systems
- Mobile equipment joystick interfaces
Installation Compatibility
Designed for universal 22mm panel cutouts per IEC 60947-1 standards. Back illumination options (CR suffix) facilitate low-light operation. Terminal chambers accommodate conductors up to 2.5mm² with captive anti-rotation tabs to prevent terminal block movement during wiring.
Compliance & Certification
- CE (EMC Directive 2014/30/EU)
- UL 508 (Industrial Control Equipment)
- RoHS 2 (2011/65/EU)
- REACH SVHC compliance
This switch series exemplifies Schneider Electric's commitment to operational excellence through precision engineering. For detailed wiring diagrams or custom configurations, consult our technical documentation team.
