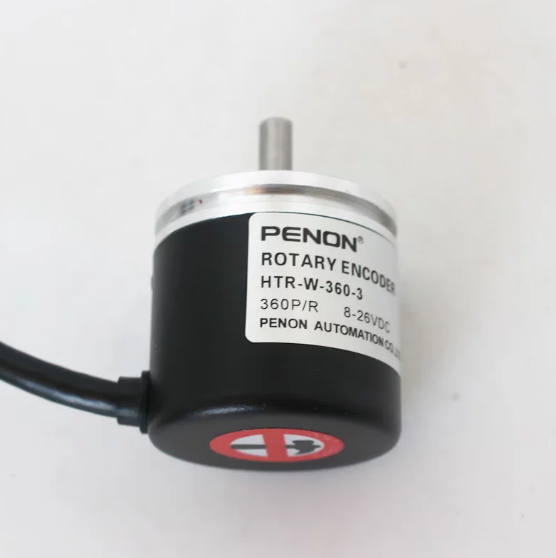

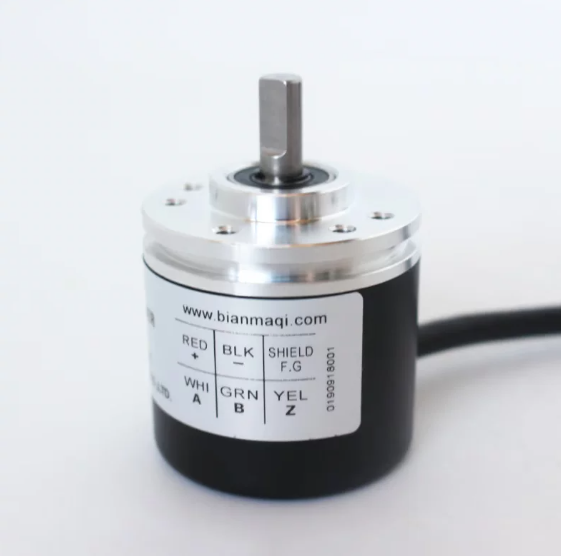

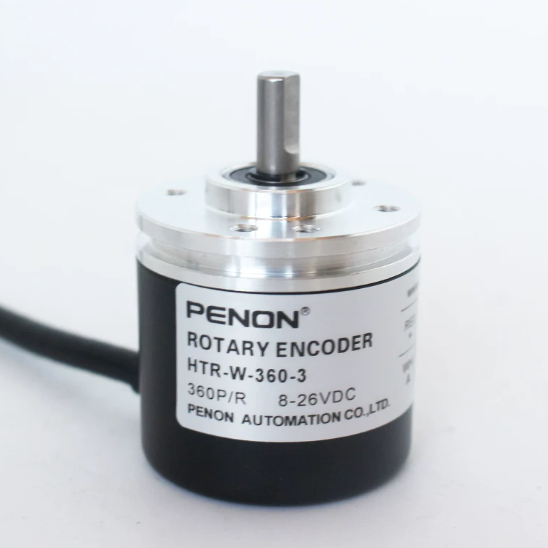

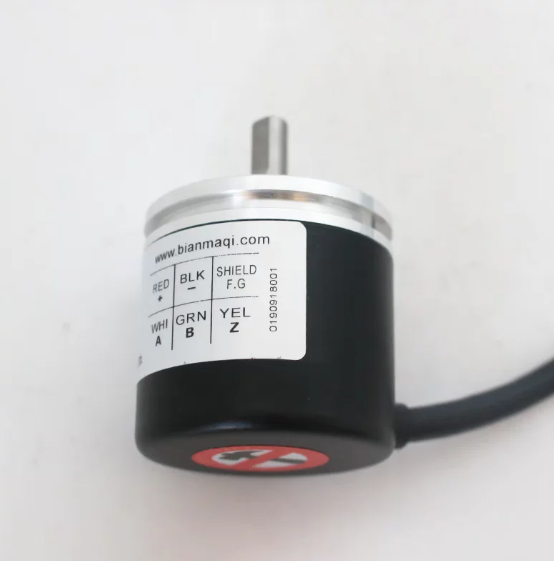

Name:HTR-W-360-3Encoder substitutes, outputABZ。 The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Parameters: The number of pulses is optional.DC5VPower supply, maximum mechanical speedEight thousandturn/Response frequency:0-300KHzConsumption of current:<150MA。

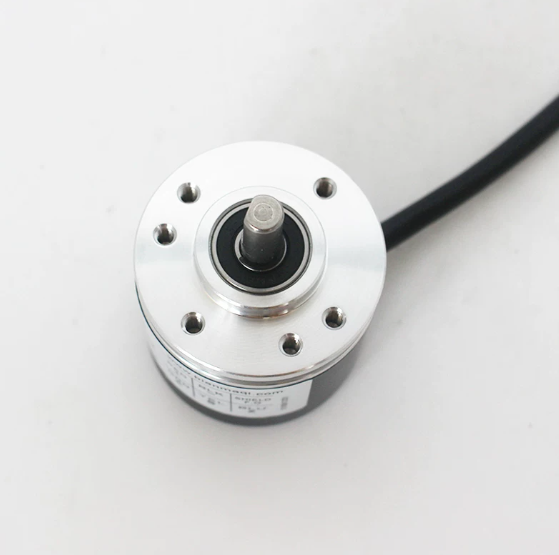

Size:Encoder body size: housingPhi 44mmAxle holePhi 6mmThe fixed holes are:4-M3Screw hole-PCD30
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)General type(Note: When the collector is not connected with pull-up resistance, there is no voltage output)
Purpose:Servo Motor, CNC Machine Tool, Elevator, Door Machine
