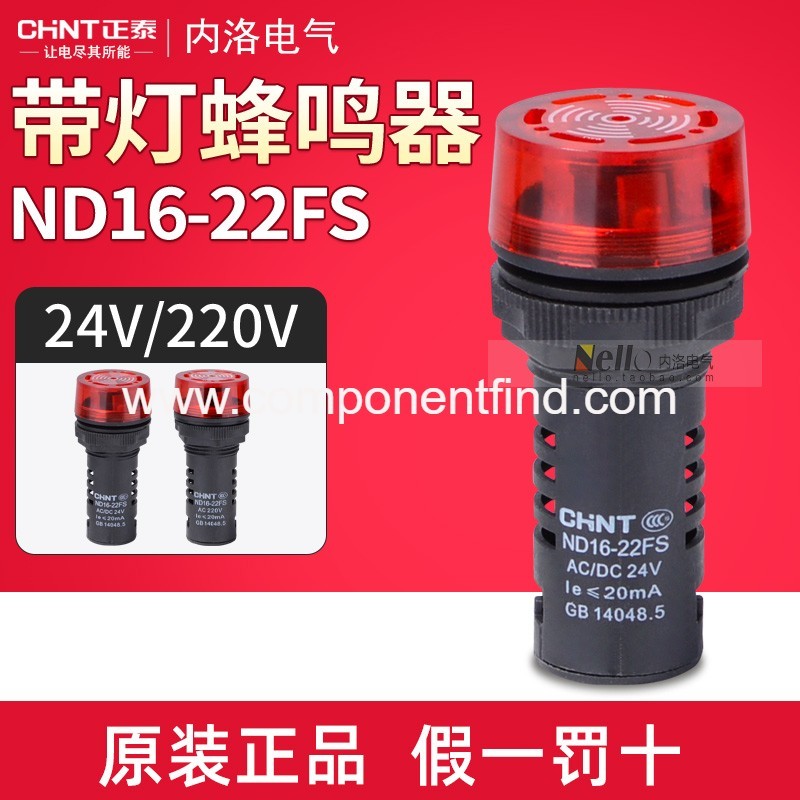

Zhengtai Illuminated Buzzer 22mm ND16-22FS: Professional Sound and Light Alarm Solution
Overview
The Zhengtai Illuminated Buzzer (Model ND16-22FS) is a high-precision industrial-grade alarm device integrating audible and visual alerts into a compact 22mm package. Designed to operate across DC24V, AC220V, and AC380V environments, it delivers unambiguous warnings in critical control systems, production lines, and safety-critical applications. Dual-mode signaling ensures rapid notice recognition in noisy or visually challenging workspaces.
Product Highlights
✅ Dual-Mode Alert System: Synchronizes piercing audio output (≥85dB) with vibrant Red LED illumination for instantaneous event signaling, acting as both an audible buzzer and visual indicator.
✅ Robust Multi-Voltage Support: Precisely engineered for universal compatibility with low-voltage (DC24V) and industrial AC power systems (AC220V-380V ±10%), eliminating separate inventory needs for diverse equipment.
✅ IP65 Protection: Sealed housing withstands dust ingress and low-pressure water jets, ensuring reliability in harsh environments like manufacturing plants or outdoor control cabinets.
✅ 22mm Mount Design: Simplified installation via standard panel cutouts with integrated locking ring (included) for secure vibration-resistant mounting. Terminal block accepts 22-18 AWG wire.
✅ High-Visibility Optics: Super-bright 620nm red LED achieves long-distance daylight perceptibility (≥80m visibility), complying with IEC 60073 safety color standards for critical notifications.
Core Applications
- Industrial Machinery: Triggers condition alarms for overheating, pressure deviations, or cycle completion
- Process Control: Visual-audible emergency shutdown warnings in chemical/pharmaceutical systems
- Energy Infrastructure: Front-panel breaker trip alerts in switchgear substations
- Production Automation: ASRS warehouse inventory management systems error flagging
- Safety Systems: Fire suppression/security system activation confirmation
Technical Specifications
| Parameter | Value |
|-----------------|-----------------------------|
| Voltage Range | DC24V, AC220V/380V, 50/60Hz |
| Sound Output | ≥85dB @ 10cm (adjustable tone)|
| Light Color | Red (620nm dominant) |
| Lens Material| Polycarbonate, anti-UV |
| Protection | IP65 (IEC 60529) |
| Operating Temp| to +70°C |
| Termination | Screw terminals, 2-position |
Model: ND16-22FS
Mounting: 22mm Ø panel cutout with lock nut
Supply Includes: Sealed buzzer unit, mounting hardware kit, installation manual
🚨 Proactive Operational Safety → Choose Zhengtai ND16-22FS where clear multi-sensory signaling reduces human-machine interface latency. Certified for reliable performance in CE, UL, and RoHS compliant environments. Contact our technical support team to configure voltage-specific variants for your PLC or DCS architecture.
Safety Note: When integrated into SIL 2 safety functions, independent redundant alarms should be implemented per IEC 61508.
